Elecon Worm Gear-NU-V Series



MECHANICAL GEAR BOXES (SPEED REDUCERS)

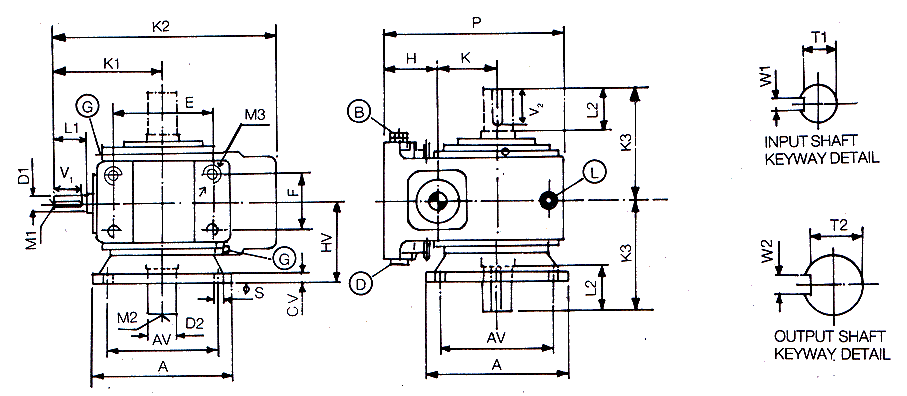

"ELECON" MODULAR WORM GEAR NU-V SERIES DIMENSIONAL DRAWING

Size	A	AV	CV	OS	HV	H	K	K1	K2	K3	P	D1	L1	M1	T1	W1	D2	L2	M2	T2	W2	E	F	M3	V1	V2
4 NU	280	235	20	18	140	108	101.6	216	440	215	324.6	32	65	M12	27	10	45	90	M16	39.5	14	200	100	M16	60	85
5 NU	320	260	22	18	165	118	127	242	492	235	385	35	70	M12	30	10	50	100	M16	44.5	14	240	130	M16	65	95
6 NU	340	270	25	23	180	127	152.4	279	580	274	449.4	38	75	M12	33	10	58	114	M20	52	16	280	150	M20	70	111
7 NU	400	320	40	27	200	146	177.8	311	656	287	524	40	82	M16	35	12	65	130	M20	58	18	320	150	M20	79	127
8 NU	440	360	40	27	220	146	203.2	342	710	312	574.2	45	88	M16	39.5	14	70	140	M20	62.5	18	340	160	M24	85	137
