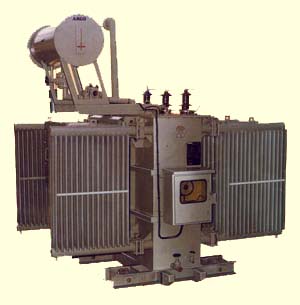

POWER DISTRIBUTION & FURNACE TRANSFORMERS

KIRLOSKAR/VIVEKANAND / ARGO make transformers are widely used by electricity boards, power distribution houses, textile mills, paper plants, chemical plants, pharmaceutical industries, automobile industries, railways, public sector under takings & various other industries, organisations.

CORES:
The core is made of imported C.R.G.O. silicon steel laminations with both sides carlite insulation of M4 grade to minimise iron losses & magnetising current. To achieve a minimum sound level
(humming noise) , the clamping device is so designed as to give a force evenly distributed on the magnetic core.

WINDINGS:
High voltage & low voltage windings are of different types like spiral, helical, crossover or continuous disc. The windings are of electrolytic copper round wires & strips insulated with paper of class "A" insulation.

INSULATION:
All insulation materials used are from ‘ELEPHANTIDE’ press boards & of permawood wherever necessary.

TAPPING SWITCH:
Manually operated off circuit tapping switch is provided for different plus minus voltage variations with lock & key arrangement. The contacts of switch are of copper& tin-plated to ensure sparkless , trouble free & smooth operations. The transformers can also be provided with ON LOAD TAP CHANGER if customers so require, at an extra cost.

OIL:
Transformers are supplied with first filling of high quality oil conforming to the IS :335 for better insulation & cooling.

TANK:
Tank is made of high quality C.R.C.A. M.S. sheets with sufficient stiffeners & all other standard accessories , like conservator, rollers, cooling radiators, drain valve, filter valve etc. Tank is welded from inside and outside & pressure tested at 7 lb/in2 to make it leakproof.

FINISHING:
The outer tank surfaces of transformer are primarily coated with two coats of red primer followed by three coats of light gray paint as per the IS :5 shade no. 631. The inside of the tank surfaces are painted by applying oil resistant zinc chrome paint.

TESTS:
All transformers are manufactured & thorough routine tests are conducted as per IS: 2026

GUARANTEE:
All transformers are guaranteed for a period of 24 months against any design / manufacturing defects.


TERMINAL ARRANGEMENTS:

1) H.V. bare bushing or cable box
2) L.V. cable box or bus duct.


STANDARD FITTINGS:

* Rating & diagram plate
* Bi-directional rollers
* Silica – gel breather
* Explosion Vent
* Thermometer pocket
* Air release plug
* Conservator with drain plug
* Oil level gauge
* tapping switch ( off circuit) with lock/key arrangement.
* Top filter valve
* Bottom filter valve cum drain valve
* Additional neutral bushing.
* Earthing pads , lifting lugs & inspection cover
* Oil sampling Valve.


EXTRA FITTINGS:

* Buchholz relay with alarm & trip contact
* Stem-type oil temperature indicator
* Dial type oil temperature indicator with alarm
* Dial type winding temperature indicator & trip contact. With C.T. with alarm & trip contact
* Dial type oil magnetic oil level gauge with low * Marshalling box ( weather –proof) level alarm contact.
* isolating radiator valves
* Jacking pads
* neutral current transformer.


RANGE OF PRODUCTS:

Transformers:
Control, L.T. Power, Furnace, Rectifier, Motor starting, Scott – connected, Three Phase to Single Phase , Neon sign, Ignition, High Voltage Low Current, Low Voltage High Current, Single Winding, Multi-shielded, Ultra Isolation & special transformers.


Distribution Transformers, Reactors, Ballast & Filter Chokes


Continuously variable voltage autotransformers ( Autostat):
Single, two & three phase models, air cooled/ oil cooled , manual / motorised 1 to 600 amps.



Voltage Stabilisers:
Manual A.C. Voltage Stabiliser in single & three phase models with stepped or smooth controls.



Servo controlled A.C. Voltage Stabilisers:
Single , two & three phase models upto 1,000 KVA.



Solid state A.C. Voltage Stabilisers:
Single & three phase models.



Ferro – resonant-type constant voltage transformers (CVT):
Automatic line voltage corrector ( Relay type)



Rectifiers:
Battery charging ( boost / float), Electro-plating, anodising , hydrogenation & for other electrochemical processes.



Automatic constant current / constant voltage rectifiers:
In single & three phase models



D.C. motor drives:
For traction, etc.



Test kits:
A.C. high voltage break down tester, primary & secondary injection sets.


Special electronics equipments

Uninterruptible Power Supply (UPS) Systems (ONLINE / OFF-LINE) Investors, Power Supplies etc.

REFERENCE PRICE LIST FOR TRANSFORMERS UPTO 3150 KVA.

ALUMINIUM WOUND TRANSFORMERS

Sr. No.

KVA Capacity

Voltage Ratio (V)

Price each (Rs.)

1

160

11000/433V

1,07,000/-

2

200

11000/433V

1,22,500/-

3

250

11000/433V

1,42,500/-



COPPER WOUND TRANSFORMERS

Sr. No.

KVA Capacity

Voltage Ratio (V)

Price each (Rs.)

4

315

11000/433

1,99,000/-

5

400

11000/433

2,24,000/-

6

500

11000/433

2,66,000/-

7

500

22000/433

2,85,000/-

8

500

33000/433

3,13,000/-

9

630

11000/433

3,07,000/-

10

630

22000/433

3,24,000/-

11

630

33000/433

3,64,000/-

12

800

11000/433

4,02,000/-

13

800

22000/433

4,12,000/-

14

800

33000/433

4,24,000/-

15

1000

11000/433

4,44,000/-

16

1000

22000/433

4,53,000/-

17

1000

33000/433

4,68,500/-

18

1250

11000/433

5,24,000/-

19

1250

22000/433

5,36,500/-

20

1250

33000/433

5,61,500/-

21

1600

11000/433

6,27,000/-

22

1600

22000/433

6,85,000/-

23

1600

33000/433

7,00,000/-

24

2000

11000/433

7,34,500/-

25

2000

22000/433

8,11,000/-

26

2000

33000/433

8,67,500/-

27

2500

11000/433

8,85,000/-

28

2500

22000/433

9,93,000/-

29

2500

33000/433

1,067,000/-

30

3000

11000/433

1,148,500/-

31

3000

22000/433

1,206,000/-

32

3000

33000/433

1,220,000/-

33

3150

11000/433

1,206,000/-

34

3150

22000/433

1,265,000/-

35

3150

33000/433

1,286,000/-


NOTE:
Above prices are exclusive of Excise Duty, Taxes etc. which are charged extra at the rate ruling at the time of supply (ex-works).



If you can't find your product above then kindly fill up this form giving your specifications, to enable us to quote and give dimensional drawings and commercial terms .
